Sensor Kit for Magician

The Sensor Kit for the Magician can be programmed using Python and graphic programming. It is easy to get started with and is suitable for beginners. The kit includes the Magic Box and the Al Camera Kit to enable more automation scenarios.

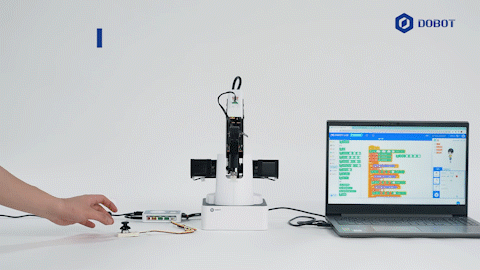

Logical Thinking

Provide Block and Python programming options.

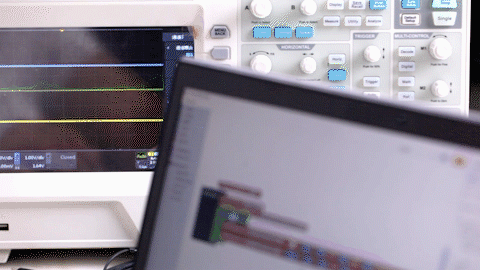

Teaching Guidance

Provide teaching demo，Easy to start programming.

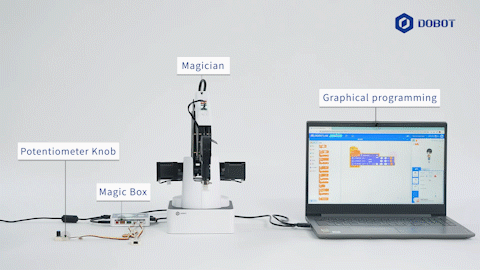

Engineering Practice

Free combination of multiple electronic modules Bring your engineering ideas to life.

Kontaktieren Sie uns

Noch Fragen? Wir sind hier, um zu helfen!

Unsere Experten stehen bereit, um Sie bei der Planung auf Ihrem Weg zum Erfolg bei der Automatisierung zu unterstützen.
Sie können Antworten auf alle Ihre Fragen zu Dobot bereitstellen:

√ Unsere Informationen bzgl. unserer Produktpalette und Preise

√ Maßgeschneiderte Lösungen, die Ihren geschäftlichen Anforderungen entsprechen

√ Richtlinien zur Vertriebspartnerschaft und mehr...

Füllen Sie einfach das Formular auf der rechten Seite aus oder senden Sie uns eine E-Mail an sales@dobot-robots.com.

Module	Communication mode	Interface	Note
Light sensor . Knob potentiometer . Sound sensor	ADC	Port3/Port4	Analog input
Joystick . Humiture sensor . Gesture sensor . Color sensor	I2C	Port1~Port6	Digital input
Micro servo	PWM	Port3~Port6	PWM input
LED module	Single-bus	Port1~Port6	-
PIR sensor . Dual button . Photoelectric switch	IO	Port1~Port6	General IO

Joystick
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	12C
Wiring Cable	Universal Sensor Cable
X/Y output value	10 ~ 250
Z output value	0: release; 1: press
Voltage	5V
Current	50mA

Dual Button
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	IO
Wiring Cable	Universal Sensor Cable
Voltage	5V
Current	50mA

PIR Sensor
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	IO
Wiring Cable	Universal Sensor Cable
Detection distance	150cm
Delay period	2s
Induction range	< 100°
Static current	< 60uA
Operating temperature	-20 ~ 80°C
Voltage	5V
Current	50mA

Gesture Sensor
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	12C
Support gestures	Support gestures: up, down, left, right, forward, backward,clockwise, counterclockwise
Effective recognition distance	5cm - 15cm
Voltage	5V
Current	50mA

Photoelect ric Sensor
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	IO
Wiring Cable	Already attached
Value range	0 (no shield), 1 (with shield)
Standard detection environment	sunlight less than 10000LX, incandescent lamp less than 3000LX
Object to be detected	transparent or opaque object
Operating temperature	-25°C~ 55°C
Response time	<2ms

Sound Sensor
Connection mode	connect to any green port of Magic Box (Port3 ~Port4)
Communication mode	ADC
Wiring Cable	Universal Sensor Cable
Value range	0-1023
Sensitivity	（48dB至52dB）@1kHz
Microphone impedance	2.2k ohms
Microphone frequency	16-20 kHz
SNR S/N	54dB

Humiture Sensor
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	12C
Wiring Cable	Universal Sensor Cable
Temperature range	0~60 °C/±1°C
Humidity range	10-90% RH ±5% RH
Voltage	5V
Current	50mA

Color Sensor
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	12C
Wiring Cable	Universal Sensor Cable
Color detection result	0: no color; 1: red; 2: green; 3: blue; 4: yellow; 5: black; 6: white
Color value RGB	0~200 (a larger value indicates a darker color)
Voltage	5V
Current	50mA

LED Module
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	monobus
Wiring Cable	Universal Sensor Cable
RGB range	0~255
Brightness range	0~100%
Voltage	5V
Current	50mA

Light Sensor
Connection mode	connect to any green port of Magic Box (Port3 ~Port4)
Communication mode	ADC
Wiring Cable	Universal Sensor Cable
Color detection result	0: no color; 1: red; 2: green; 3: blue; 4: yellow; 5: black; 6: white
Color value RGB	0~200 (a larger value indicates a darker color)
Voltage	5V
Current	50mA

Knob potentiometer
Output voltag	0~2500mV
Connection mode	connect to any green port of Magic Box (Port3 ~Port4)
Communication mode	ADC
Wiring Cable	Universal Sensor Cable
Brightness return value	0-407 (extreme fluctuation is normal)
Voltage	5V
Current	50mA

Micro servo
Connection mode	connect to any green port of Magic Box (Portl ~Port6)
Communication mode	PWM
Wiring Cable	Universal Sensor Cable
Servo speed	0.1sec/60/4.8V；0.09sec/60/6.0V
Torque	1.6kg.cm/4.8V；1.8kg.cm/6.0V
PWM frequency	50Hz/0.5~2.5MS
Voltage	4.8-6.0V
Current	60mA

AI Camera Kit
Dimensions	50mm* 44mm* 25mm
CMOS	1/4inch
Image pixels	1M
Image Format	YUV/MJPG
Data Format	240* 320.640*480. 1280 720
Maximum Image Transfer Rate	1280* 720@30fps
Camera Control	Saturation, Contrast, Acutance
White balance	Auto
Exposure	Auto
Working Temperature	0°C to +50°C
Operating voltage	DC 5V
Interface	USB 2.0
Voice input	Integrated microphone
Feature	All-in-one design, integrated microphone, distortion-free lens
Camera working angle	0°-135°
Function	Face recognition, image recognition, OCR text recognition, speech recognition, etc.

Magic Box
MCU	ARM 32-bit Cortex-M4
Main frequency	168 MHz
Voltage	100V~240V AC, 50/60Hz
Power input	12V - 5A DC
Working Environment	-5°C - 45°C
Power	60W Max
Communication	USB virtual serial port/serial port/Bluetooth
Programming Language	MicroPython
Software	DobotStudio/DobotLab
Weight	98g
Size	95 mm X 80 mm X 21.5 mm
