Sliding Rail Kit

Sliding Rail Kit

Make Your Robot Go Beyond the Limits

Kontaktieren Sie uns

Expand Learning with Upscaling Dobot Sliding Rail Kit

An operating range of one additional meter opens up extra opportunities for extensive scaling. With the sliding rail kit, the working space of DOBOT Magician can be fully extended to enable it to perform large-scale tasks, such as long-distance picking and placing, a more extensive range of writing, drawing, or laser engraving.

Sliding Rail Kit

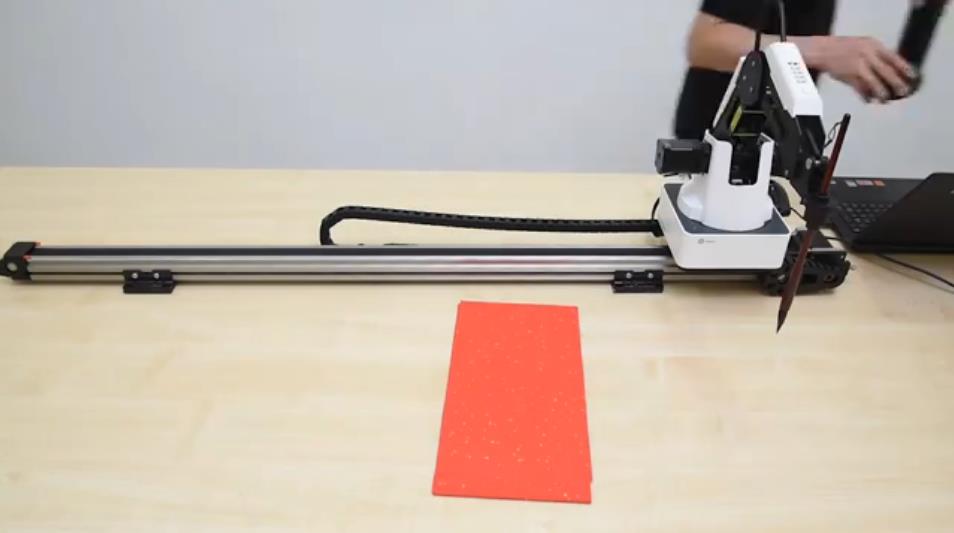

Accurate Performance of Sliding Rail

Accurate Performance of Sliding Rail

The high-precision industrial linear rail ensures the robot runs very smoothly and coherently.

The accurate operation of the sliding rail provides an innovative learning approach for scaling rich features and multiple applications.

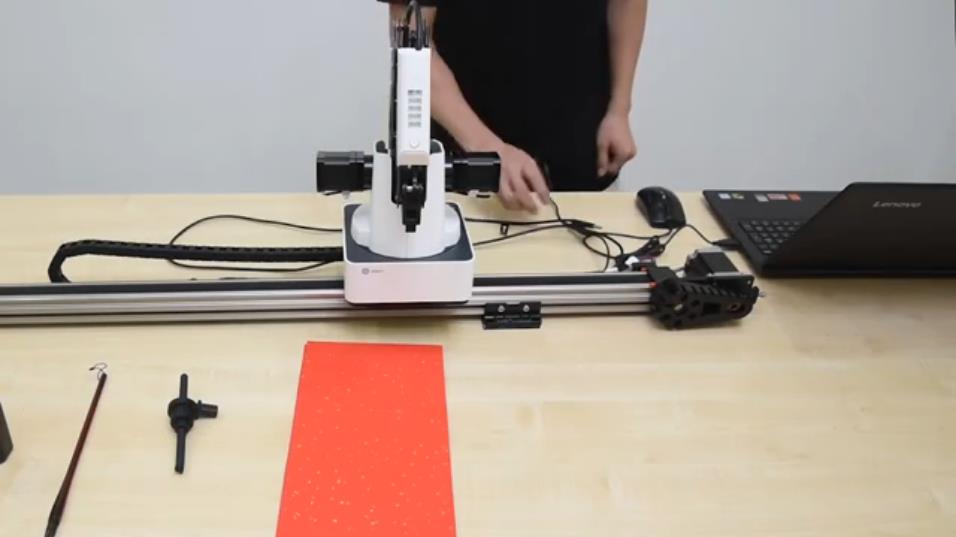

Diverse Tool Kit

Diverse Tool Kit

The tool kit contains five different L-shaped screwdrivers, including 1.5 mm, 2 mm, 2.5 mm, 3 mm, and 4 mm. A complete set of hex screwdrivers makes it simple and easy to install.

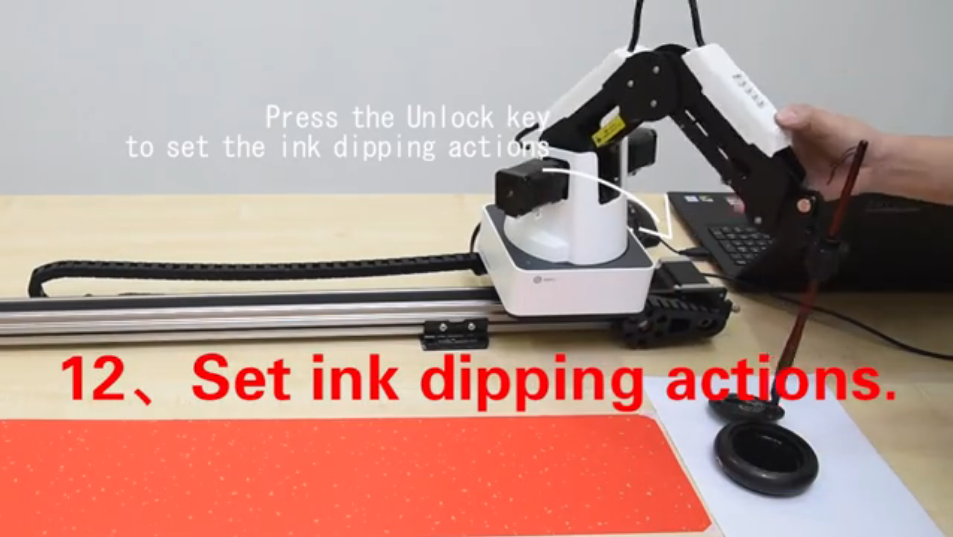

Safety Wire Set

Safety Wire Set

With a drag-chain cable carrier containing and protecting the cable, you can have a smooth user experience while all the wires are in good order.

Noch Fragen? Wir sind hier, um zu helfen!

Unsere Experten stehen bereit, um Sie bei der Planung auf Ihrem Weg zum Erfolg bei der Automatisierung zu unterstützen.
Sie können Antworten auf alle Ihre Fragen zu Dobot bereitstellen:
√ Unsere Informationen bzgl. unserer Produktpalette und Preise
√ Maßgeschneiderte Lösungen, die Ihren geschäftlichen Anforderungen entsprechen
√ Richtlinien zur Vertriebspartnerschaft und mehr...
Füllen Sie einfach das Formular auf der rechten Seite aus oder senden Sie uns eine E-Mail an sales@dobot-robots.com.
Specifications
Payload 5 kg
Effective Travel Distance 1000 mm
Maximum Speed 150 mm/s
Maximum Acceleration 150 mm/s²
Repeat positioning accuracy 0.01 mm
Absolute positioning accuracy 0.25 mm
Net Weight 4.7 KG
Weight (including packing) 7.23 KG
Dimension(Lenth × Width × Height) 1320 mm × 120 mm × 55 mm
Shipping List
The package include:Sliding Rall, Tool Kit, Wire Set, Attachment and Assembly instructions. We don't cover the customs tax

What should I do if the linear rail is moving erratically?

If you cannot control the motion of the linear rail when both the linear rail...

Learn more

What should I do if the homing position of the linear rail is abnormal?

If the linear rail is in the position as shown in the following picture...

Learn more

The drawing function is not working as expected?

When the PLT file is made and imported to the software, drawing...

Learn more
